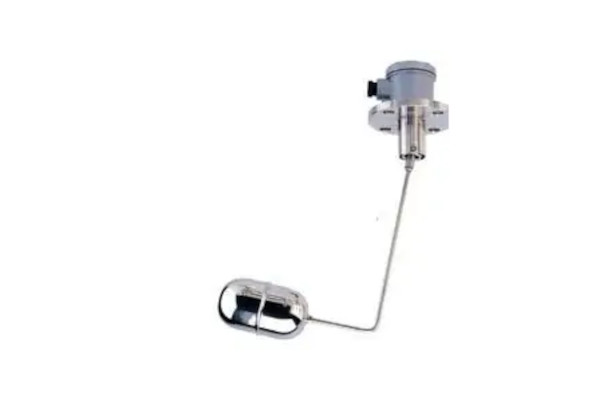

LF50DFM – Vertically Mounted Industrial/Marine Type Level Switch

Model: LF50DFM

Large size, rugged and reliable, these level switches are designed for the demands of industrial and marine applications. Available with many options including different float types, stem lengths and connection types; a high temperature version is also available for temperatures up to 200°C.

Features

  • Both MicroSwitch type and Reed Switch are available. The MicroSwitch type is usable even at ambient temp. of 100°C max.
  • Mounting flanges are custom-specifiable. (JIS, DIN, ANSI).
  • A variety of floats can be suited to different specific gravity (S.G.) of liquid.
  • Wetted material can be selected from either SUS304 or SUS316 as well as explosion proof enclosure models.



Product Code

LF50DFM

This product is not available for online purchase. Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: LF50DFM - Vertically Mounted Industrial/Marine Type Level Switch (SKU: LF50DFM)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Technical Specification
Wetted parts

304 or 316 Stainless steel

Mounting

Flange 2" x 5kg/cm2

Specific gravity

0.55

Max pressure

5kg/cm2
