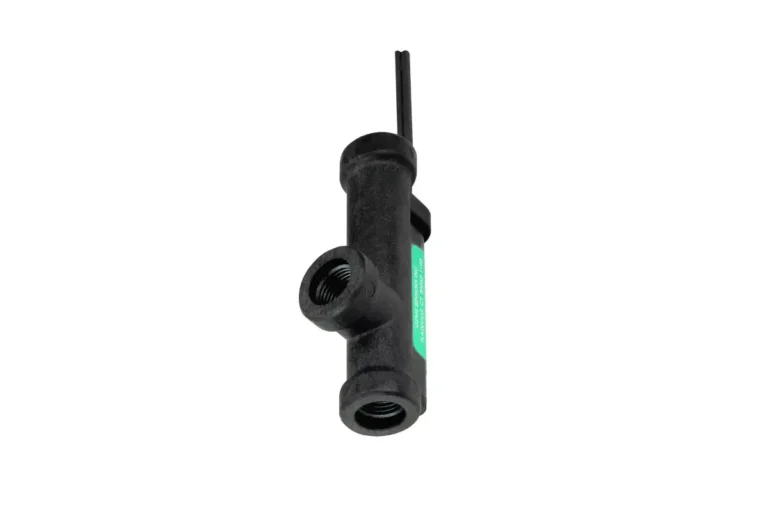

Flow Switch – FS-4 Series
The FS-4 Series flow switch makes flow protection economical for a broad range of industrial applications such as welders, lubrication systems, medical sterilizers and laundry chemicals dispensing.
Applications:
- Electronic Equipment: Laser Heads, Welders, Power Supplies, High Speed Spindles, X-Ray Tubes, Semiconductor Equipment
- Bearings or Gears: Presses, Rotating Equipment, Conveyors, Machine Tools, Robotics
- Processing & Dispensing Equipment: Water Purifications and Filtering, X-Ray Film Processing, Beverage Dispensing, Chemical Additives, Gas Sampling, Distilling
Principle
When the magnetic field of permanent magnet inside the shuttle or piston is moved into the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.
Technical Spec
| Flow Rate Settings | 0.1 GPM to 1.5 GPM (0.4 LPM to 6 LPM) |
|---|---|
| Port Size | 9/16" - 18 UNF (available with adaptor to 1/4"BSP) |
| Primary Construction Material | Ryton® |
| Setting Type | Fixed |
