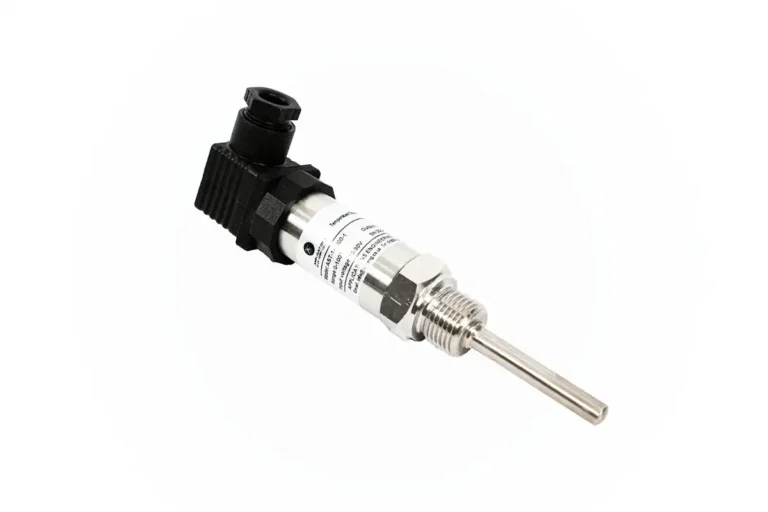

Temperature Transmitter – ATS 6000
The ATS 6000 is a cost effective temperature sensor built around a PT100 with an integrated 4-20mA transmitter giving effective and reliable temperature measurement over a range of 0-100°C (as standard with other ranges available on request). A two wire electrical connection by means of a standard DIN 43650 connector and an all 316 stainless steel body make this temperature transmitter both simple to use and very rugged.
Technical Spec
| Output | 4-20mA (other options available) |
|---|---|
| Fitting | 1/2" BSP (other options available) |
| Construction | All 316 grade stainless steel |
| Probe Length | 50mm |
| 75mm | |
| 100mm | |
| 150mm | |
| (other options available on request) | |
| Electrical Connection | Din 43650A |
| Pressure Rating | 100 Bar |
Related Categories
Advantages
- Affordable
- Rugged construction
- Quick and easy to fit
- Reliable
