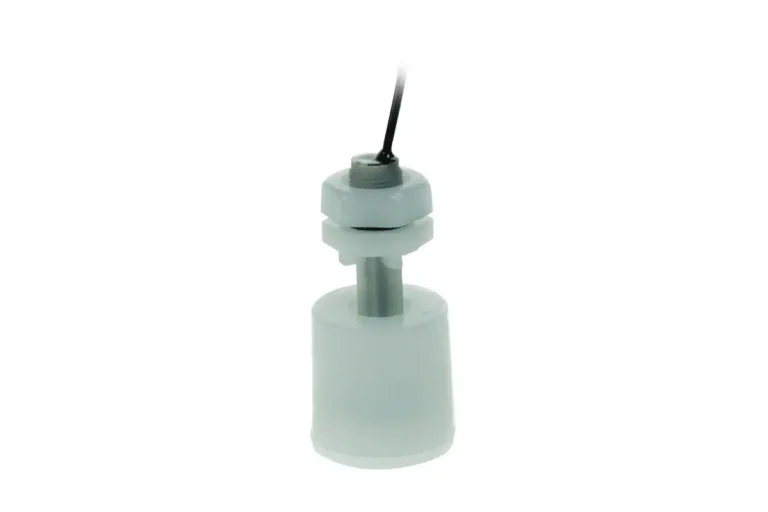

RF-OV31 – Plastic Vertically Mounted Level Switch

This plastic level switch is vertically mounted to give either a high level or low level signal and is reversible meaning that it can be either normally open or normally closed.

The switch comes with 300mm leads but can be made with various lead or cable lengths (please get in touch with your requirements, minimum order quantities may apply).


When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.

Request a Quote
Switch rating
240 VAC/ 200 VDC @ 0.5A
Wetted parts
Electrical termination
Lead wire ( standard 300 mm )
Specific gravity
Max pressure
Weight; Approximate
12.8 g
Mounting Thread
1/8" PF
