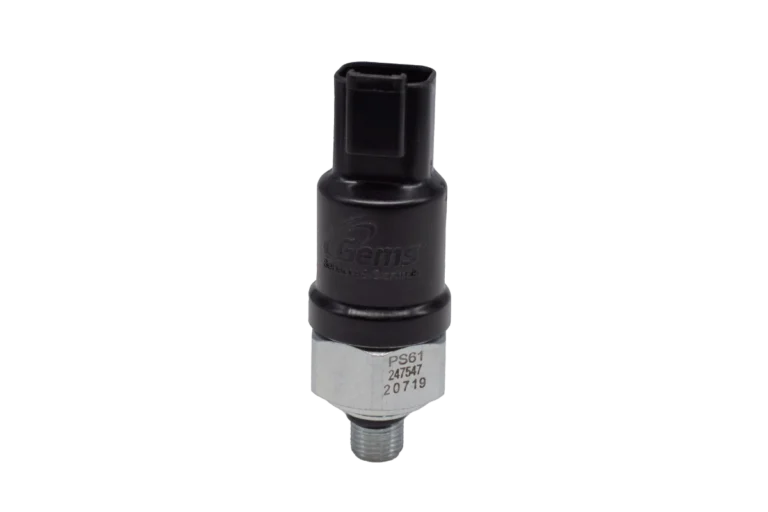

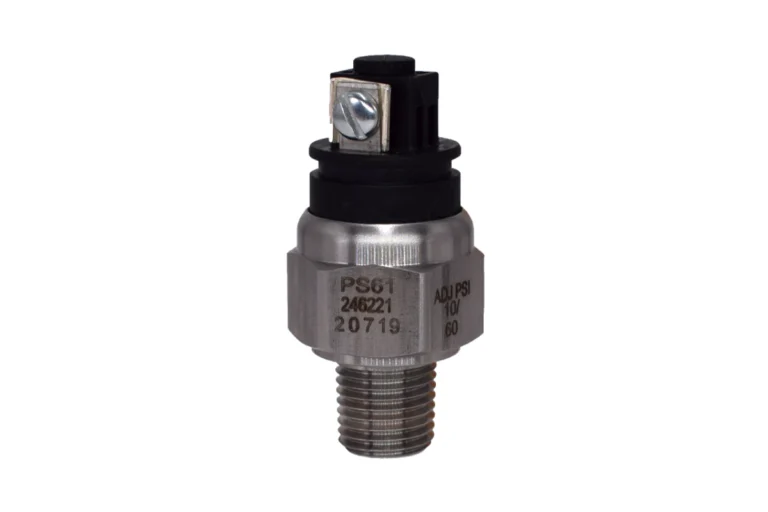

PS61 – Adjustable with High Proof Pressure

Model: PS61

Gems Sensors & Controls’ PS61 Subminiature Pressure Switch family is designed for OEM applications. It is available with enhanced ingress protection (IP) to IPX7, IPX9K, and IP6KX and integral electrical connections and can withstand temperatures up to 250°F (121°C).The PS61 compact pressure switch has been designed with the OEM in mind and is equipped with high proof pressure capabilities for demanding hydraulic applications such as forklifts, scissor lifts, and off road equipment.

  • 10 to 4,350 psi (0.7 to 300 bar)
  • Adjustable or Factory Set
  • Perfect for Demanding OHV Applications

Product Code

PS61

This product is not available for online purchase. Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: PS61 - Adjustable with High Proof Pressure (SKU: PS61)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Technical Specification
Adjustment Ranges

10-60 psi (0.7- 4.1 bar) to 2970-4350 psi (205-300 bar)

Switch rating

100 VA Max ; 42V max voltage

Diaphragm

Nitrile (Standard), EPDM, Viton ® or Neoprene

Fitting

Zinc Plated Steel (standard) or 316 Stainless steel (option)

Proof pressure

Diaphragm – 6000 psi (414 bar) ; Piston – 7000 (483 bar)
