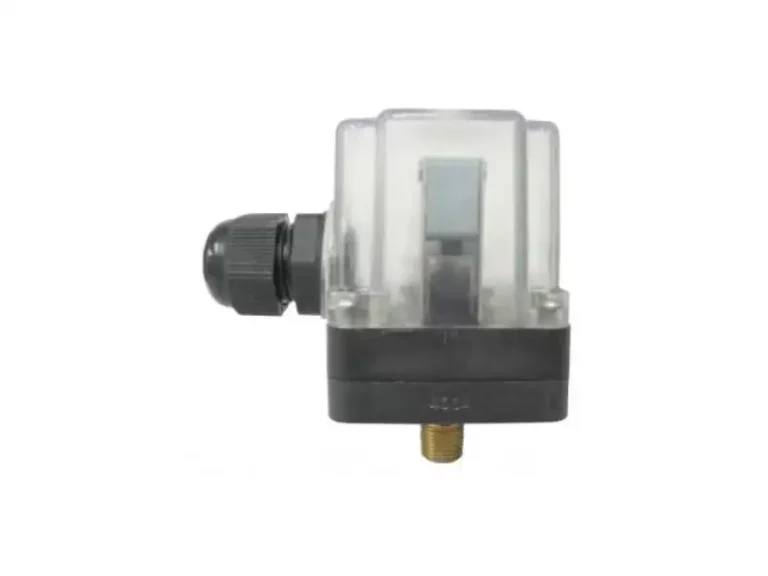

MA1 – SPDT Low Pressure Switch

Model: MA1

Field adjustable low pressure switch with SPDT contacts and metal fitting.

The MA1 range of pressure switches has been designed for use in applications such as water heaters, boilers, spas and swimming pool heaters and filters. The switch is easily adjustable by means of a hand knob and has a 16A SPDT micro switch and housed in an IP65 enclosure fitted with a cable PG11 cable gland.

Adjustment ranges are available between 25-100 mbar and 200-1500 mbar.

Download Product Technical Specification

Product Code

MA1

This product is not available for online purchase.
Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: MA1 - SPDT Low Pressure Switch (SKU: MA1)

"*" indicates required fields

Categories

Pressure Switches

Single Pole Double Throw Pressure Switches

Technical Specification: Electrical rating
16A/250Vac
Switch type
SPDT
Diaphragm material
EPDM
Protection
IP65
Adjustment ranges
25-100 mbar to 200-1500 mbar
Max pressure
6 bar
Max Temperature
85°C
Downloads: Product Datasheet

View Download

×
